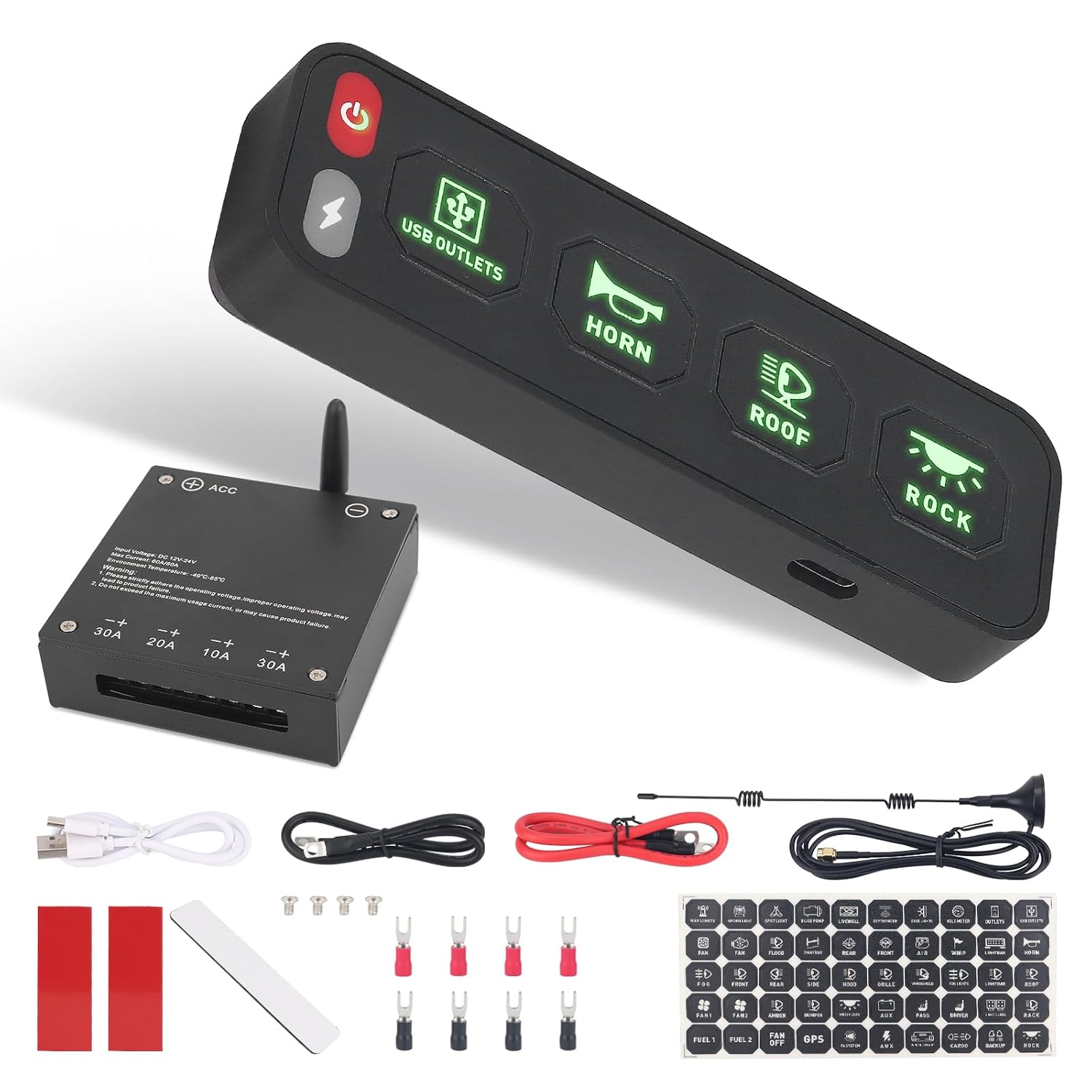

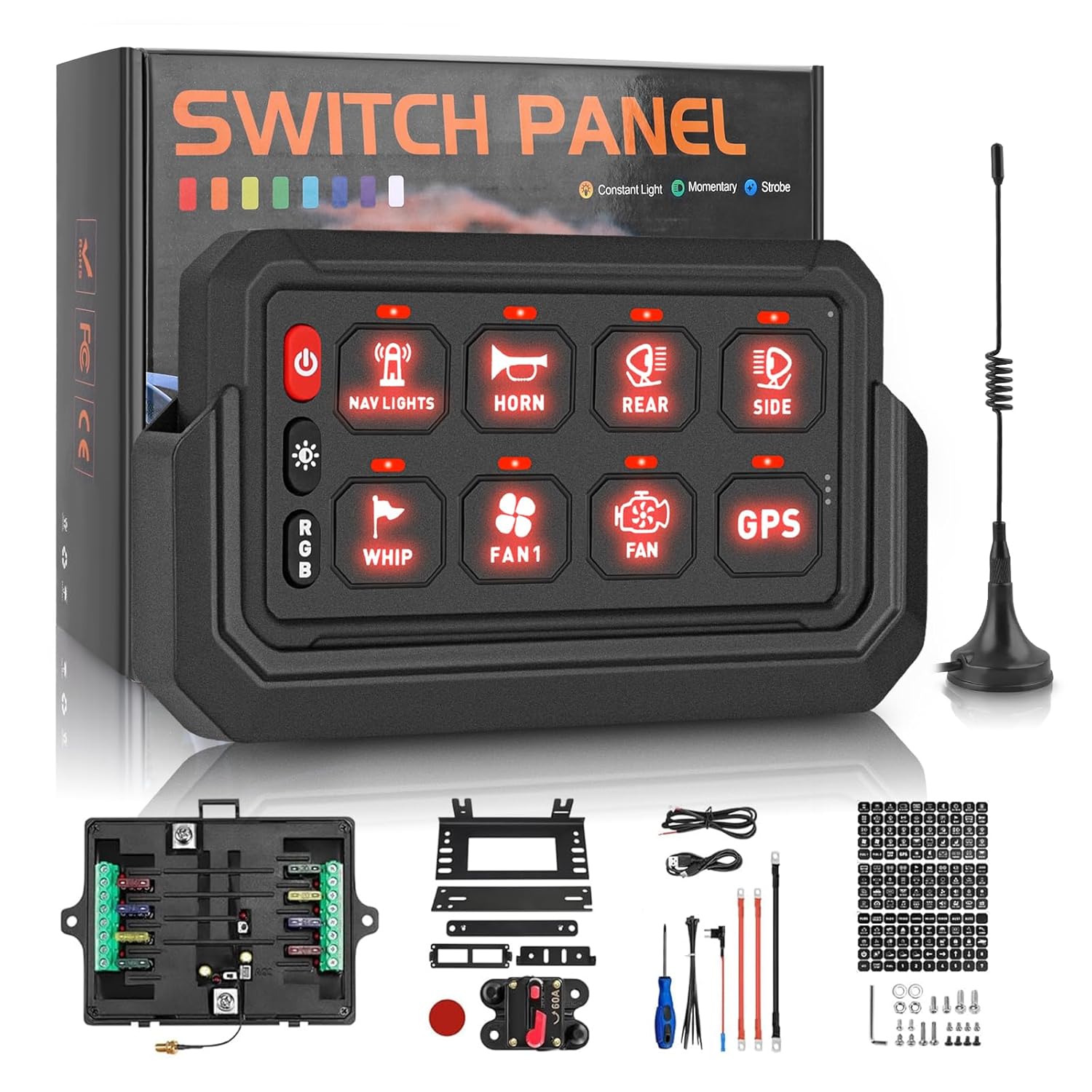

P1 RGB 12 Gang Switch Panel with APP Control Multifunction Toggle Momentary Flash Strobe Switch Circuit Control Relay System Box for Truck Offroad Marine UTV, Waterproof 5 Level Brightness
4.9 (109 items)
Limited Time SaleUS$89.99 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 212469996 | Release Date | 2026/04/06 | List Price | US$60.00 | Model Number | 212469996 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
- App Control 12 Gang Bluetooth Switch Panel: The switch panel can be seamlessly controlled from a smartphone, providing reliable operation in a range of 50-60 feet. Bluetooth RGB 12 gang switch panel allows you via APP to set backlit colors / lighting modes and control modes.

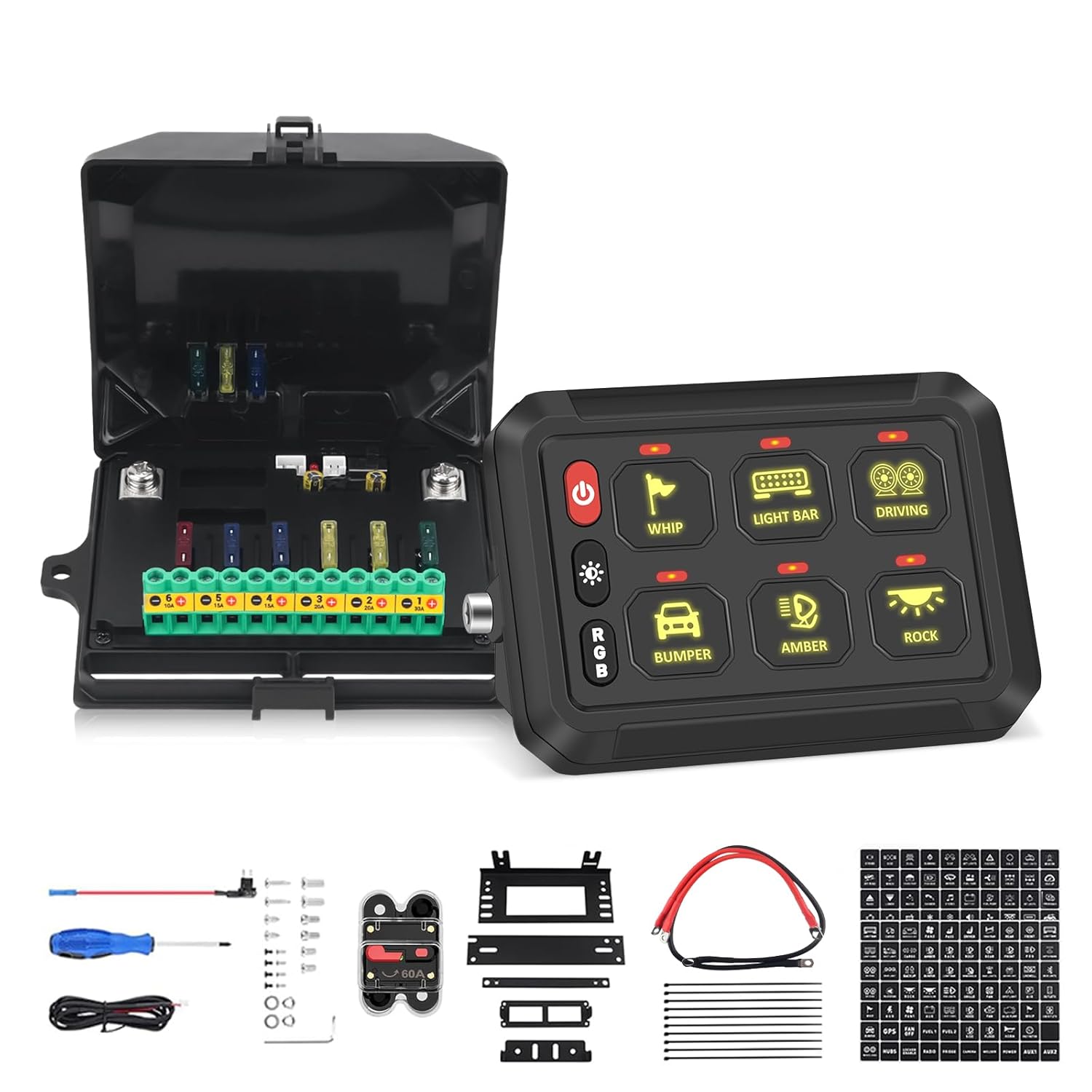

- ACC or Battery Power Supply - The control box switch provides two ways to obtain power: Connect ACC or Battery. The control box with push switch of the switch panel kits features a half-opening transparent cover, divided into 3 parts for easy wiring and fault checking. The external ACC/Battery Switch allows for easy changing of the controlling way.
- 3 Silicone Function Buttons: ZAMLIE RGB 5-inch RGB 12 gang switch panel upgrade is a multifunctional switch panel. Stylish and thin panel design, equipped with 3 silicone buttons, easy for blind people to operate, comfortable touch, convenient and practical operation. including ON/OFF switch with memory function, Brightness Adjustment Button, and RGB Color Adjustment Button.
- 4 Control Modes: This upgraded multifunction switch panel has 4 modes. TOGGLE (Constant light), MOMENTARY (press and hold to turn on, release to turn off), PULSED (strobe mode, used for warning light), and FLASH mode (Used for turn signal)
- 11 RGB Colors Modes: The 12 gang switch panel with app control uses high-quality RGB LEDs and upgrades more backlighting to flexibly adjust lighting effects according to the environment to match your driving needs. The RGB buttons can switch between 8 colors (red, orange, yellow, green, blue, purple, and white).
- 5-Level Brightness: Long press to switch between gradient/jump/inhalation. 5-level brightness adjustment (100%, 75%, 50%, 25%, 10%), providing drivers and passengers with a more comfortable visual experience and enjoyable journey.
- Safety Protection: Maximum Current: 80A, IP65 waterproof rating, 960W/12V, 1920W/24V, Operating Temperature: - 40°C ~ + 85°C. An aluminum alloy back cover with a sturdy metal bracket is durable. Built-in solid state relay, providing overvoltage protection, reverse polarity protection, overcurrent protection, and thermal protection, comes with an extra replacement fuse to ensure the safe operation of all connected lights and accessories.
- Applicable and Easy-to-Install: Rocker switch with a Circuit Control Relay System, which help to clean up all wiring harness. This universal 12 gang switch panel is perfect for RV, off-road vehicles, car, truck, ATV, UTV, SUV, Boat, yachts, Caravans, 12V-24V DC marine, etc
| Model | 4e88e845-f84e-4703-94b5-38012104d8ca |
|---|---|
| Wattage | 1920 watts |
| Terminal | Screw |
| Brand Name | ZAMLIE |
| Unit Count | 1.0 Count |
| Switch Type | Push Button |
| Circuit Type | 12-way |
| Contact Type | Normally Open |
| Manufacturer | ZAMLIE |
| Actuator Type | Push Button |
| Material Type | Aluminum |
| Mounting Type | Panel Mount |
| Connector Type | Clamp |
| Control Method | App |
| Current Rating | 80 Amps |
| Operation Mode | ON-OFF |
| Item Dimensions | 12.2 x 8.66 x 3.35 inches |
| Number of Items | 1 |
| Contact Material | Aluminum |
| Operating Voltage | 12 Volts |
| Specification Met | CE |
| Included Components | switch panel |
| Number of Positions | 1 |
| Connectivity Protocol | Bluetooth |
| Upper Temperature Rating | 85 Degrees Celsius |
| International Protection Rating | IP65 |
