A Pair of 1.25G/s Bidi Gigabit Single-Mode Fiber Ethernet Media Converter with 2PCS Bidi SFP LC Transceiver Module Included, 10/100/1000Base-Tx to 1000Base-SX SMF RJ45 to SFP Slot up to 30KM

Product Overview: Transform and extend your network effortlessly with this comprehensive Gigabit Ethernet Fiber Media Converter Kit. This set includes 2 single-mode Gigabit Ethernet fiber media converters, each equipped with a BiDi SFP slot LC transceiver module, supporting transmission distances of up to 30 km over single-mode fiber (SMF). The kit also comes with two DC power adapters (5V DC/1A), a detailed product manual, and a multi-language quick installation guide, making it an ideal solution for network expansion in enterprise, data center, and campus environments. Key Features: 1. High-Speed Gigabit Connectivity: Each media converter supports 1.25Gbps data rates, providing seamless conversion between 10/100/1000Base-TX copper and 1000Base-LX fiber optics. The SFP port connects to the included BiDi transceiver, enabling a long-distance, high-speed network bridge. 2. Dual-Port Design for Versatile Use: Equipped with both SFP and RJ45 ports, the media converters allow easy integration into existing networks. The RJ45 port supports 10/100/1000M auto-negotiation, ensuring compatibility with various devices and network speeds. 3. Reliable Performance in Challenging Environments: Designed with a single-mode fiber (SMF) and single LC fiber connector, these converters operate on a 1310nm wavelength and support data transmission up to 30 km. The robust metal enclosure, air-vent design, and superior heat dissipation capabilities ensure low power consumption, reliable operation, and a long service life. 4. Safety and Durability Built-In: The included DC power adapters meet UL/EN60950 and GB4943 safety standards, supporting a wide input voltage range (AC100V~240V). The converters also feature lightning protection, high anti-interference ability, and low power dissipation (≤3 watts), making them ideal for secure and stable network connections. 5. Compact and Easy to Install: With a standalone design and compact dimensions (95x72x27mm), these media converters are easy to install and offer flexible mounting options. The plug-and-play setup requires no software installation, and the converters are hot-swappable for easy maintenance and troubleshooting. Wide Range of Applications: - Network Extension and Bridging: Extend or bridge networks across long distances using fiber cables, perfect for large complexes, campuses, or remote buildings. - Secure and Isolated Connectivity: Provides connectivity in isolated areas or in buildings where EMI is not acceptable, ensuring a secure and stable network for government, corporate, and sensitive applications. - Versatile Deployment: Ideal for deploying high-speed fiber optic networks in environments that demand low electromagnetic interference and require robust, high-quality network infrastructure. LED Status Indicators: - FP (Fiber Port Speed): Lights up when the fiber speed is 1000Mbps. - TP (Twisted Pair Port Speed): Lights up when the TP speed is 1000Mbps. - Link/ACT: Indicates link and activity; flashes when data is transmitting and receiving (left for fiber port, right for TP port). - FDX (Full Duplex Mode): Lights up when TP is in full-duplex mode, off when in half-duplex mode. - PWR (Power): Lights up when DC power is on, otherwise off. Product Specifications: - Operating Temperature: 0°C to 60°C; - Storage Temperature: -20°C to 70°C. - Humidity Range: 5% to 90% RH (non-condensing), ensuring reliable performance in a variety of environmental conditions. What’s Included in the Package: - 2 x Single-Mode Gigabit Ethernet Fiber Media Converters: Provides seamless fiber-to-copper network conversion. - 2 x BiDi SFP Slot LC Transceiver Modules (1310nm/1550nm): Supports up to 30 km transmission distance on single-mode fiber (SMF). - 2 x DC Power Adapters: Output voltage 5V DC/1A, UL certified for safe and reliable power supply. - 1 x Multi-Language Quick Installation Guide and User Manual: For easy and straightforward setup. Why Choose This Media Converter Kit: This Gigabit Ethernet Fiber Media Converter Kit offers a complete solution for extending and securing your network over long distances. With its plug-and-play design, superior heat dissipation, lightning protection, and compact size, it ensures a reliable, high-speed network connection with minimal setup and maintenance. Ideal for enterprises, data centers, campuses, and any environment where secure, stable, and long-distance fiber optic connections are needed.

• 1. Complete Kit for Seamless Fiber-to-Ethernet Conversion: Includes 2 Gigabit Single-Mode Ethernet Media Converters with SFP slots, 2 BiDi LC SFP Transceiver Modules (1310nm/1550nm), 2 AC/DC Power Supplies (5V-1A, UL Certified), and a user manual. Perfect for easy and reliable network expansion.
• 2. High-Performance Fiber Optic to Copper Conversion: This media converter kit supports the conversion of 1000Base-LX LC fiber to 10/100/1000Base-T RJ-45 copper Ethernet, or vice versa, using BiDi technology. Enjoy efficient network bridging with up to 1.25Gbps transfer rate over a single-mode fiber (SMF) connection.
• 3. Long-Distance Transmission Support: Extend your network range up to 30 kilometers over OS1/OS2 single-mode fiber (SMF, LC, Simplex) using the included BiDi SFP transceivers. Ideal for long-distance data transmission in enterprise environments, data centers, and campus networks.

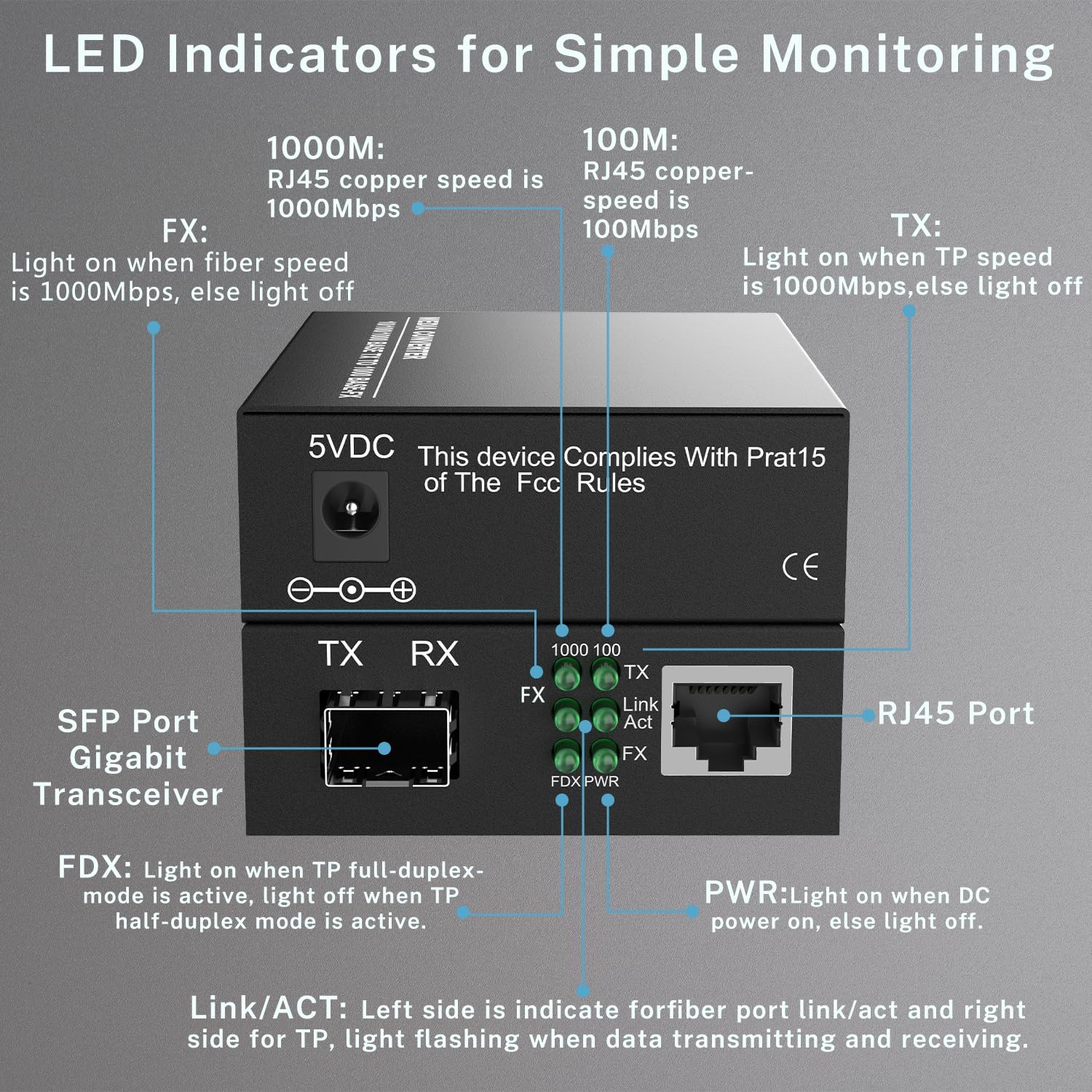

• 4. Auto-Negotiation & Easy Installation: Supports 10M/100M/1000M Auto-Negotiation RJ45 ports with Auto-MDI/MDIX crossover, and complies with IEEE 802.3/802.3u/802.3z/802.3ab standards. Hot-swappable, plug-and-play design with LED indicators for easy monitoring and troubleshooting.
• 5. Reliable and Durable Design: Built to operate in a wide temperature range from 0°C to 60°C and support jumbo frames up to 9K bytes. Backed by a 3-year warranty and 15 years of OEM expertise, offering the best in product quality and customer support.
